Description

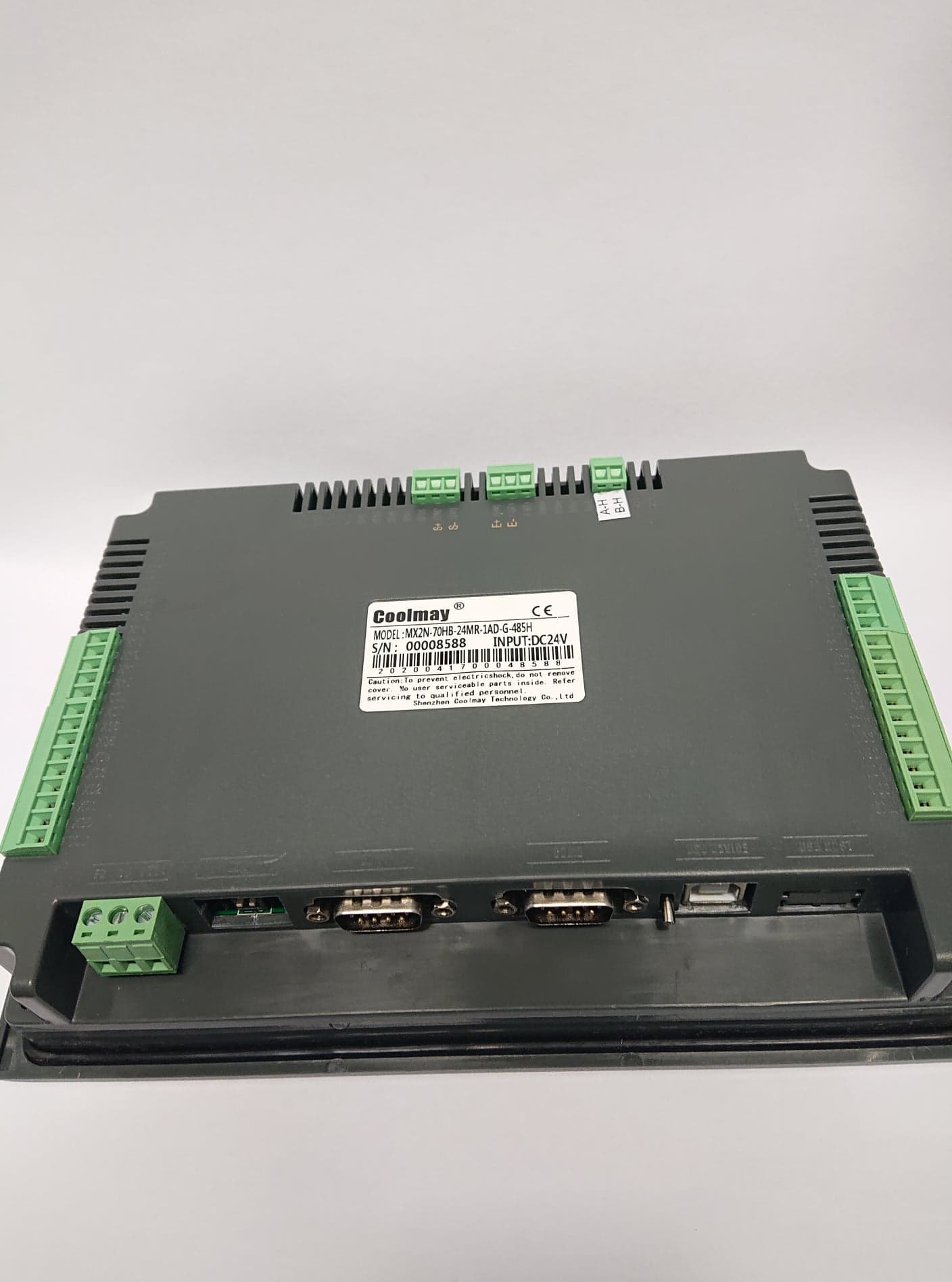

Coolmay MX2N 7 inch 12DI/12DO relay 1 weighing function
Coolmay MX2N-70HB Series 7-inch PLC HMI All In One integrates PLC controller, HMI, input/output in a single device which is compatible with Mitsubishi software. Comes with necessary software and training manuals and materials.
MX2N-70HB-24MR-1AD-G-485H
24MR (12DI-12DO relay) – 1AD – G (Analog Input point, weighing function) – 485H (RS485 on HMI)
NPN
Product parameters:
- Display: 65536 true color 7″ TFT LCD screen, 800 * 480 pixel resolution
- Running memory: 64MB RAM and 128MB ROM
- CPU: ARM9 288MHz
- Dimensions: 212*148*40mm
- Display size: 154*87mm
- Opening size (cutout size): 194*138mm
- I/O: 12DI/12DO
- High Speed Counting: Single Phase 6 channel 10KHz
- Compatible with Mitsubishi Developer 8.86 & WORKS 2
- NPN
